Basic Earthquake Knowledge

Depending on its location, a structure might be subjected to earthquake loads such as those building located in high or mediate seismic activity zones (Japan, California,etc…). Thus, structural designers should be able to safely design for earthquakes. It starts with having some basic knowledge about the categories of seismic waves and how earthquakes are measures. These points are outlined in this article.

Earthquakes are caused by the rupturing of faults in the earth’s crust, landslides and volcanic eruptions. Man-made activities such as a large explosion can also cause an earthquake. Normally, earthquakes are located close to the borders of tectonic plates. These plates are constantly in motion so stresses build up and release energy through the earth’s crust, causing the shaking of the ground.

Categories of Seismic Waves

The energy released during an earthquake is transmitted in the form of waves. These waves are divided in two basic categories: body waves and surface waves.

Body waves are transferred through the inner part of the earth and consist of primary waves (P) and secondary waves (S).

  • Primary waves, also called compressional waves, travel in longitudinal direction, push and pull the earth and are faster than S-waves.
  • Secondary waves are also called shear waves and have a transverse direction, which shakes the earth vertically and horizontally. Their motion is critical and can cause damage to structures.

Surface, waves which is the other part of seismic waves, divides into Love and Rayleigh waves. They travel on the earth’s surface; both have slower speed than body waves and they generally cause the worst damage in structures.

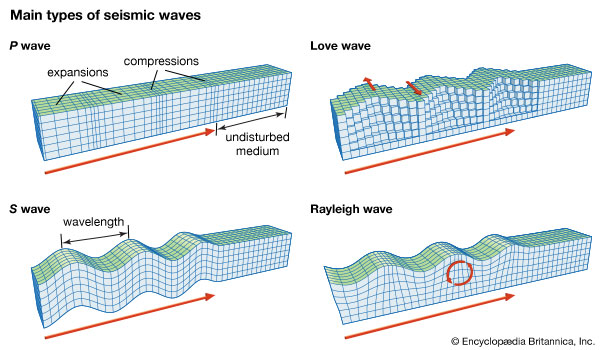

Earthquake waves

Measurement of Earthquake

There are two ways that an earthquake can be measured: the Richter magnitude and the modified Mercalli intensity. In current design practice, the Richter scale is widely used to measure the magnitude of an earthquake.

The Richter scale is a logarithmic expression of the magnitude of energy, which defines magnitude as the logarithm of the ratio of the amplitude of the seismic waves to arbitrary, minor amplitude.

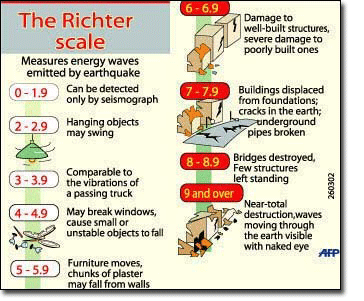

The Richter scale

The modified Mercalli intensity scale measures the potential damage of an earthquake. The range of this scale depends on observations of people’s reactions during an earthquake, the damage to structures and on physical effects caused by an earthquake.

MMI scale
