What Are Stirrups?
A stirrup is a closed loop of reinforcement bar, which has a main function of holding the main reinforcement bars together in a reinforced concrete element. Stirrups can come in multiple shapes according to the design and shape of the element.
The stirrups used are typically made from a steel bar wrapped around the top and bottom bars of beams. In beams, stirrups cross potential diagonal cracks and help carry shear. Closed stirrups can also resist torsion, restrain longitudinal bars, and confine the concrete.
The words stirrup, tie, and hoop are often mixed on site. Stirrup is commonly used for transverse reinforcement in beams. Tie or hoop is more common in columns, where it confines the core and restrains longitudinal compression bars against lateral buckling.
Stirrups assist in holding the reinforcement bars in place. They are typically placed perpendicular to the longitudinal reinforcement and are sometimes placed diagonally. This helps to prevent shear failure, which usually produces diagonal cracks in beams. The spacing along the beam is important and should be specified by the designer.
The stirrup shape, diameter, number of legs, hook detail, and spacing must come from the structural drawings and the applicable code. They should not be selected from a general thumb rule.

Main Functions of Stirrups
- Resist shear. A stirrup that crosses an inclined crack carries tension and contributes to the member shear strength.
- Control diagonal cracking. Correctly spaced stirrups limit the width and growth of inclined cracks.
- Resist torsion. Closed stirrups work with longitudinal corner bars as part of the torsional reinforcement.
- Hold the reinforcement cage. Stirrups keep the main bars in their correct position during fabrication and concreting.
- Restrain compression bars. Ties or hoops reduce the unsupported length of longitudinal bars and help prevent outward buckling.
- Confine concrete. Closely spaced hoops improve confinement and ductility in designated zones, especially where seismic detailing is required.

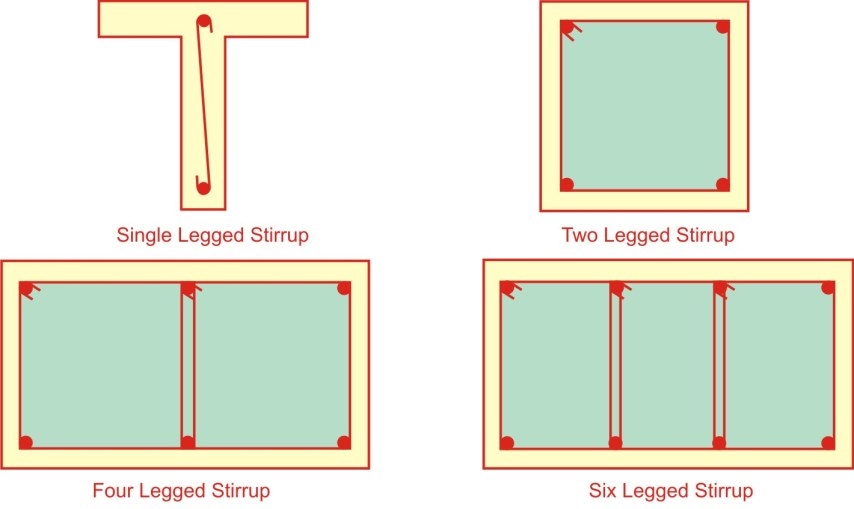

Types of Stirrups by Number of Legs
| Type | Basic arrangement | Common reason for use | Important caution |
|---|---|---|---|
| Single-leg stirrup | One vertical or inclined leg with anchorage at both ends | Special narrow sections or local reinforcement where permitted | It does not enclose the complete cage and is not a general substitute for a closed stirrup |
| Two-leg stirrup | Usually one closed rectangular loop with two vertical legs | Common beams with moderate width and a simple bar layout | Both legs must be included correctly when calculating Av |
| Four-leg stirrup | Outer closed hoop with internal crossties or overlapping closed units | Wide beams or members with several longitudinal bars across the width | All legs and crossties require the anchorage shown on the drawings |
| Six-leg or multi-leg stirrup | Closed outer hoop with multiple internal legs | Very wide members or heavy shear demand | Concrete placement and vibration become more difficult when reinforcement is congested |
Types of Stirrups by Shape and Arrangement
Closed Rectangular or Square Stirrups
This is the most common arrangement for rectangular beams. A closed stirrup can provide shear resistance, hold corner bars, and contribute to torsion resistance when detailed with the required longitudinal reinforcement.
Open U-Shaped Stirrups
An open stirrup may be used where the approved design permits it and torsion or confinement does not require a closed loop. Its ends still require the anchorage specified by the code and drawing. An open U-shape should not replace a closed stirrup only because it is easier to install.
Circular Ties and Hoops
Circular hoops are used around longitudinal bars in circular columns, piers, and piles. Their main roles are confinement and restraint of the longitudinal reinforcement. The tie spacing and arrangement depend on the member design and seismic requirements.
Spiral or Helical Reinforcement
A spiral is a continuous helix around longitudinal column bars. It provides continuous confinement instead of separate individual ties. Spiral pitch, bar size, splice, and termination details are controlled by the design code.
Inclined Stirrups
Stirrups may be inclined at 45 degrees or more to the longitudinal tension reinforcement when permitted by the design method. Vertical stirrups are more common because they are simpler to fabricate and place.
Why Stirrup Spacing Changes Along a Beam
Stirrups resist shear only when potential inclined cracks cross their legs. Therefore, the maximum spacing is limited so that a diagonal crack cannot pass between the stirrups without being intercepted.
In a simply supported beam with normal gravity loading, shear is usually highest near the supports. The drawing may therefore show closer stirrup spacing near each support and wider spacing toward midspan. This is not universal. Concentrated loads, continuous spans, openings, torsion, seismic zones, bar cutoffs, and transfer regions can produce different spacing zones.
Do not increase the spacing on site because the midspan “looks safe.” Follow the bar mark and spacing limits shown on the issued structural drawing.
How to Read a Stirrup Note
A note such as 10 mm 2L @ 150 mm c/c commonly means:
| Part of note | Meaning |
|---|---|
| 10 mm | Nominal stirrup-bar diameter |
| 2L | Two shear-resisting legs |
| @ 150 mm c/c | Stirrups spaced at 150 mm centre to centre |
The note may not show every necessary detail. Check the bar-bending schedule, hook angle, hook extension, concrete cover, first-stirrup location, stirrup zone length, bar grade, and any seismic detail.
Stirrups for Shear and Torsion
For vertical stirrups in a beam, the shear contribution is commonly written in the form:
Vs = Av fyt d / s
where Av is the total area of the stirrup legs effective within spacing s, fyt is the yield strength of the transverse reinforcement, d is the effective depth, and s is the stirrup spacing.
A stirrup cannot develop its calculated strength without adequate anchorage. The hooks and the portions near the compression and tension faces must be detailed to develop the required force. For torsion, closed stirrups are required because the torsional cracks can spiral around the member.
Hook and Anchorage Details
- Use the hook angle and straight extension shown on the approved details.
- Place hooks around the required longitudinal bars and toward the confined core where specified.
- Do not use a 90-degree hook where a 135-degree seismic hook is required.
- Do not repeatedly bend and straighten a stirrup to make it fit.
- Keep the stirrup within the required concrete cover. Cover is normally measured to the outside of the stirrup.
- Make sure crossties engage the intended longitudinal bars and cannot open during concreting.
Site Inspection Checklist
| Check | What to verify before concrete |
|---|---|
| Bar mark and diameter | Match the issued drawing and bar-bending schedule |
| Number of legs | All required outer and internal legs are present |
| Spacing | Correct centre-to-centre spacing in each design zone |
| First stirrup | Correct distance from the support face or joint |
| Hooks and extensions | Correct angle, length, orientation, and anchorage bar |
| Cover | Cover blocks support the outside of the stirrup cage |
| Cage stability | Ties are secure and will not shift during placing and vibration |
| Congestion | Enough clear space remains for concrete flow and consolidation |
| Openings and embeds | No unauthorized cutting or displacement of stirrups |

References
- Wight, J. K., Reinforced Concrete: Mechanics and Design, 8th Edition, Chapters 6 and 7.
- ACI 318, Building Code Requirements for Structural Concrete, provisions for transverse reinforcement, anchorage, shear, torsion, and seismic detailing.
