Structural loads are forces, imposed deformations, or environmental actions that a structure must resist. The principal categories include permanent loads, occupancy and use loads, wind, snow, rain, earthquake effects, soil and water pressures, temperature effects, and other actions required by the governing code.
Types of loads acting on structures
| Load or action | Typical source | Important variations | Common design concern |
|---|---|---|---|
| Dead load | Self-weight of structural and permanently attached nonstructural components. | Actual dimensions, material density, fixed equipment, facade, partitions, and finishes. | Gravity force, long-term deformation, foundation demand, and seismic mass. |
| Live load | Occupants, furniture, movable equipment, storage, and vehicles. | Occupancy, loaded area, concentration, impact, and future use. | Strength, deflection, vibration, local effects, and load arrangement. |
| Wind | Pressure and suction caused by atmospheric flow around the structure. | Site wind speed, exposure, height, shape, openings, internal pressure, and dynamic response. | Main system, components and cladding, uplift, drift, and comfort. |
| Snow and rain | Accumulated precipitation on roofs. | Climate, roof geometry, drifting, sliding, thermal condition, drainage, and ponding. | Unbalanced loading, local drift, instability, and drainage failure. |
| Earthquake | Inertial forces produced by ground motion and structural response. | Site hazard, soil, mass, period, damping, irregularity, ductility, and system. | Load path, drift, detailing, nonstructural components, and foundation interaction. |
| Soil, water, and flood | Lateral earth pressure, groundwater, stored liquid, current, waves, buoyancy, and flood actions. | Water level, drainage, soil properties, surcharge, movement, and scour. | Sliding, overturning, uplift, leakage, retaining action, and foundation stability. |
| Temperature, shrinkage, creep, and settlement | Imposed strain or movement rather than an applied gravity load. | Restraint, member length, temperature range, material age, moisture, soil movement, and construction sequence. | Cracking, secondary force, joint movement, distortion, and redistribution. |
| Construction and accidental actions | Temporary storage, equipment, concrete placement, impact, fire, explosion, or other abnormal events. | Sequence, duration, probability, protection, and project-specific risk. | Temporary stability, robustness, alternate load path, and disproportionate damage. |
Dead loads
Dead load includes the self-weight of the structure and permanent construction such as walls, facade, fixed services, finishes, and permanently installed equipment. Preliminary calculations may use estimated dimensions, but final design should use the actual member sizes and specified materials.
Live loads
Live loads arise from occupancy and use. The governing standard assigns minimum values by occupancy and may include concentrated loads, vehicle loads, impact, partition allowances, or permitted reductions. A residential room, office, storage area, assembly space, and equipment room should not be treated as the same occupancy.
Environmental loads

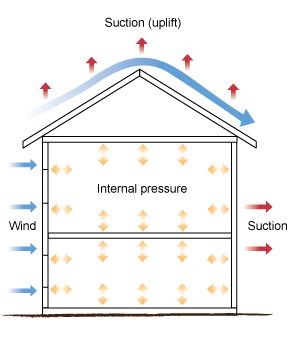

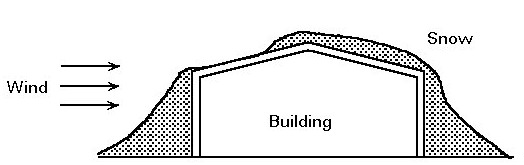

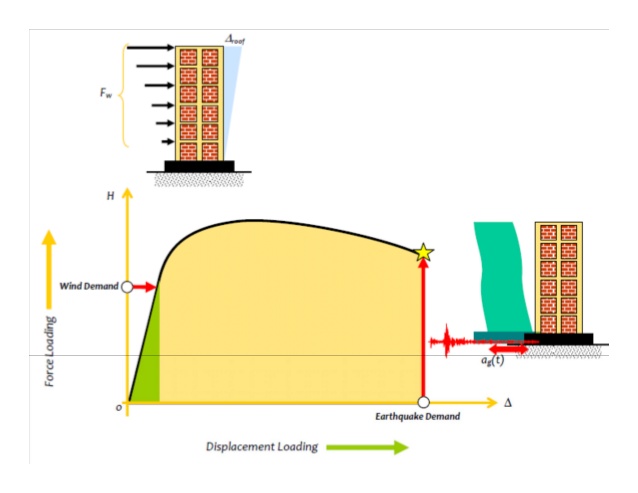

Wind, snow, rain, flood, and earthquake effects depend strongly on location and the structure. Wind may act inward or outward and can produce uplift. Snow may drift or become unbalanced. Rain may cause ponding when roof drainage or stiffness is inadequate. Earthquake demand depends on ground motion, soil, mass, dynamic properties, configuration, and the selected structural system.
Soil, water, and imposed deformation

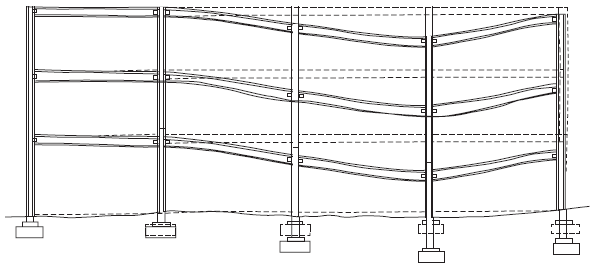

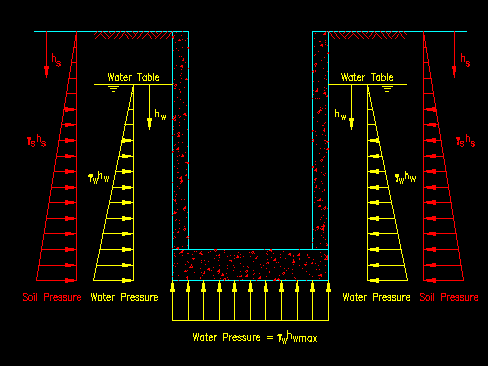

Basements, retaining walls, tanks, foundations, and buried structures may be subjected to soil pressure, groundwater, surcharge, stored liquids, uplift, or settlement. Temperature change, concrete shrinkage and creep, support movement, and differential settlement can create forces when deformation is restrained.
Load path
Identifying a load is only the first step. The structure needs a continuous load path from the point of application through slabs, beams, walls, frames, diaphragms, connections, and foundations to the ground. Local components and connections must be checked along with the main resisting system.
Why load combinations are required
Loads do not all reach their maximum value at the same time, and uncertainty differs between load types. Design standards therefore provide load combinations and factors for strength, stability, and serviceability checks. The exact combinations depend on the governing standard, material code, design method, and jurisdiction.
Do not copy a numerical load combination from a general article into a project calculation. Confirm the adopted code edition, risk category, occupancy, hazard data, and all project-specific actions.
