Taipei 101 is a 508 m (1,667 ft) composite office tower in Taipei’s Xinyi District. It has 101 floors above ground and five basement levels. Completed in 2004, it was the world’s tallest building until 2010. Its engineering importance is not one spectacular device, but the way the braced core, mega-columns, outriggers, composite members, foundation, and tuned mass damper work together.
Taipei 101 Engineering Profile
| Item | Verified project fact | Engineering significance |
|---|---|---|
| Architectural height | 508 m (1,667 ft) | Height makes wind response, overturning, drift, acceleration, and construction sequence major design issues. |
| Floors | 101 above ground; 5 below ground | The basements, mat, piles, and retaining walls were analysed as part of an integrated foundation system. |
| Completion | 2004 | World’s tallest building from 2004 until Burj Khalifa took the title in 2010. |
| Main structural concept | Braced steel core, perimeter mega-columns, moment frames, belt trusses, and outriggers | The combined mega-frame resists gravity and lateral loads and controls drift and overturning. |
| Foundation | Owner reports 380 cast-in-place piles, generally about 80 m deep and 1.5 m diameter | Instrumented load tests and variable bedrock sockets addressed settlement and site-specific capacity. |
| Main tuned mass damper | 660 Mg (metric tonnes), about 5.5 m diameter, built from 41 steel layers | Primarily reduces wind-induced motion and occupant discomfort; it supplements the structural frame. |
The Structural System: Core, Mega-Columns, and Outriggers

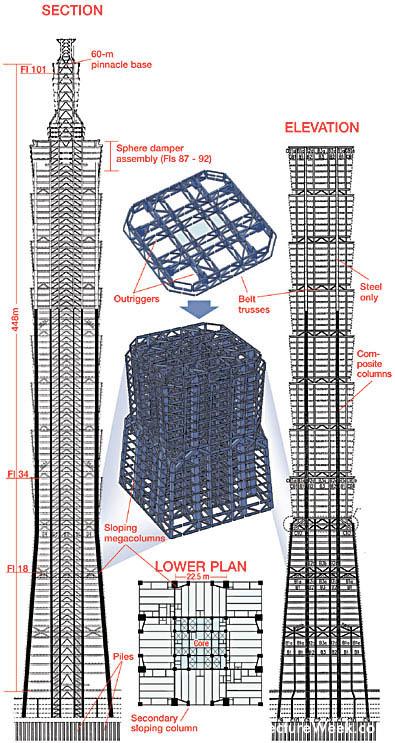

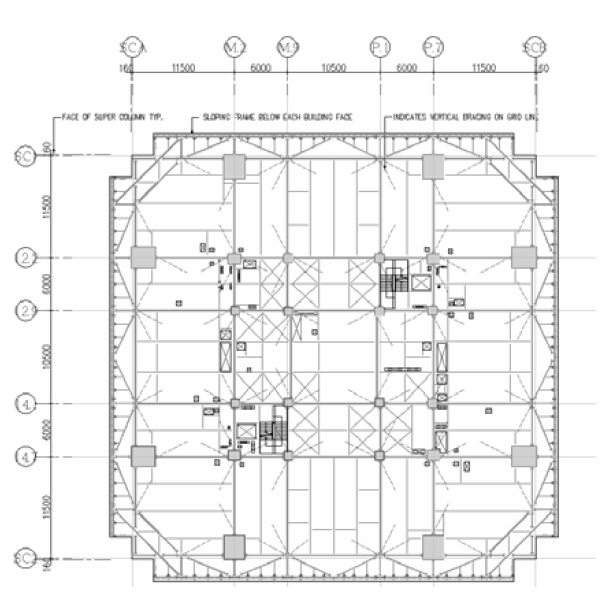

Taipei 101 uses a mega-frame system. At the centre, 16 steel box columns and bracing form a stiff core. Around the perimeter, eight large mega-columns – two on each face – create a much wider structural footprint. Other perimeter framing contributes gravity and lateral resistance.
At selected mechanical floors, outrigger trusses connect the core to the perimeter mega-columns. When wind or earthquake inertia tries to bend the tower, the core tends to rotate. The outriggers restrain that rotation by engaging widely spaced exterior columns: columns on one side take increased compression while those on the other side see reduced compression or tension demand. Belt trusses help distribute these forces around the perimeter.

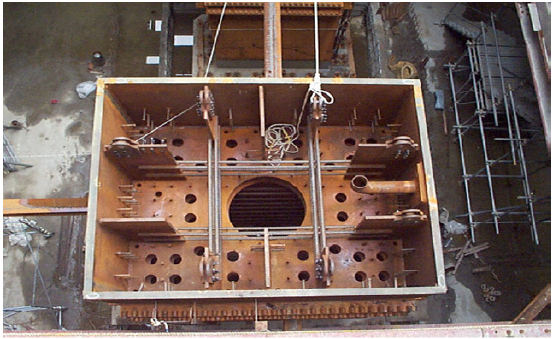

The lower tower’s large composite columns use steel box sections with high-strength concrete fill where specified. This combines the constructability and ductility of structural steel with the stiffness and compressive contribution of concrete. The exact plate sizes, concrete strengths, connection details, and transition levels vary up the building; a short profile should not reduce them to one universal section.
How Taipei 101 Resists Wind and Earthquakes
Wind and earthquakes are different design actions. Typhoon winds can act for a long time, causing along-wind and crosswind response, drift, facade demand, and accelerations that occupants can feel. Earthquake ground motion produces inertia throughout the structure and places a premium on strength, ductility, stable connections, and controlled deformation.
Wind-tunnel studies informed refinements to the tower’s corners and stepped form. These changes reduced vortex-shedding response and overturning demand. The primary lateral system then provides strength and stiffness: the braced core, moment frames, perimeter mega-columns, and outriggers share the actions through a three-dimensional load path.
The repeated eight-story architectural modules express the building’s bamboo-inspired design. They also align with major mechanical/structural zones, but the visual symbolism should not be confused with a simple `one module equals one independent structure` explanation. Floors, frames, outriggers, and columns act together.
The Deep Foundation

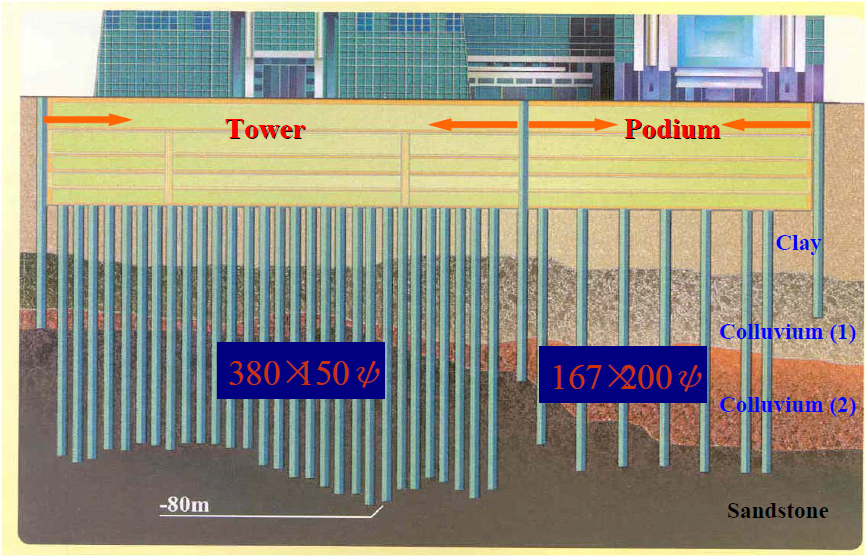

The official building profile reports 380 piles extending roughly 80 m below the site, with 1.5 m diameter piles and the deepest reaching about 30 m into bedrock. The foundation research describes cast-in-place reinforced-concrete piles installed with bedrock socket lengths of approximately 15 to 33 m. The difference is important: pile length and socket length are not the same measurement.

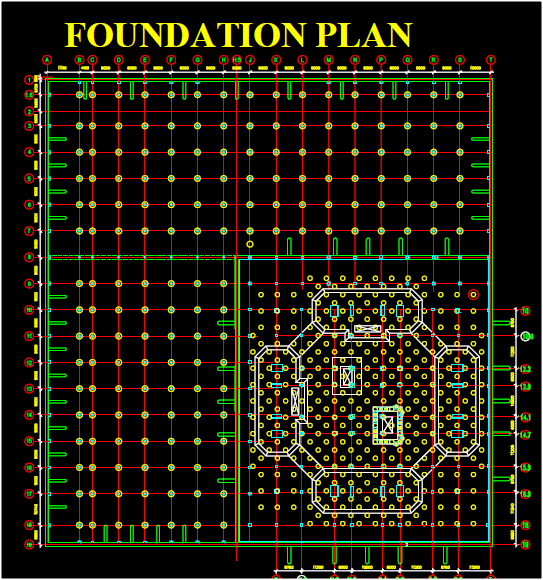

Engineers did not assign one capacity to every pile by rule. Full-scale trial installations and instrumented compression and pullout load tests were used to evaluate the actual ground and construction method. The design considered pile-group effects, settlement, time-dependent behavior, and the interaction of the superstructure, basements, mat, piles, and diaphragm walls.
This is why `380 piles` alone does not explain the foundation. A supertall building is sensitive to total and differential settlement, so load testing, installation control, bottom cleaning, post-grouting where specified, and an integrated soil-structure model were part of the solution.
How the 660 Tonne Tuned Mass Damper Works

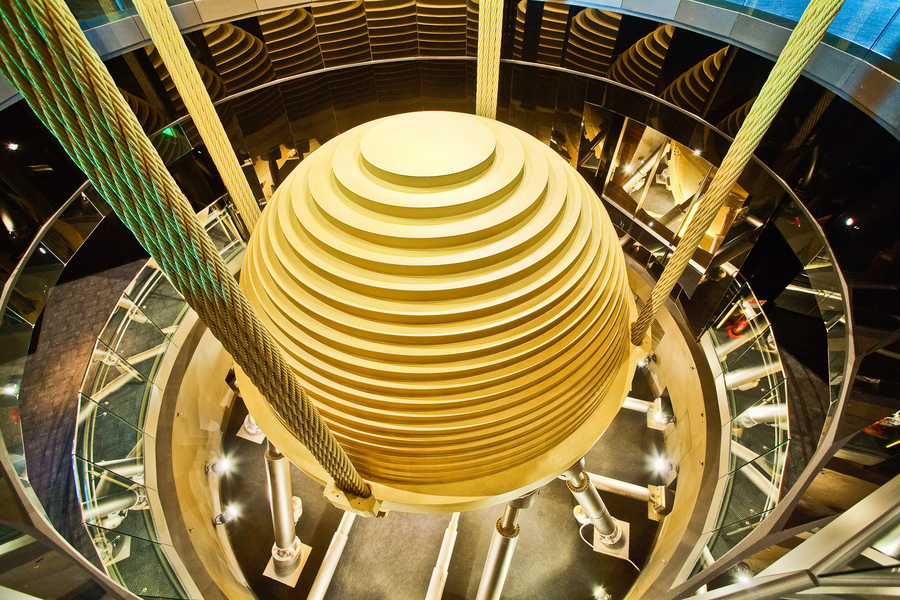

The visible golden sphere is a tuned mass damper (TMD). Official Taipei 101 information gives a mass of 660 metric tonnes, which is about 728 US short tons, and a diameter of approximately 5.5 m. It is built from 41 layers of steel plate, each about 12.5 cm thick, welded into the spherical mass. The pendulum occupies the upper levels around floors 87 to 92.

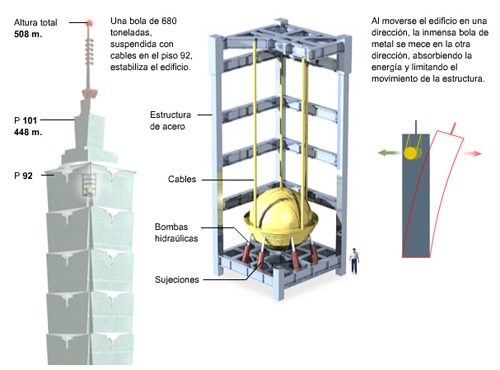

When the tower moves near the vibration mode for which the device is tuned, the suspended mass moves relative to the building. Its motion is out of phase with the tower response, reducing the resonant amplification. Hydraulic damping devices dissipate part of that relative-motion energy as heat, while restraints and bumpers limit excessive travel under rare events.
Engineering Load Path in Plain Language
- Floor slabs and framing collect gravity loads and transfer them to core and perimeter columns.
- Wind pressure and earthquake inertia enter the floor diaphragms and lateral framing.
- The braced core and moment frames resist shear and bending through the height.
- Outriggers engage the wide perimeter mega-columns, reducing core rotation and sharing overturning force.
- Composite columns and core members carry force to the basement and reinforced-concrete mat.
- The mat distributes actions into the bored-pile group and surrounding foundation system.
- The TMD reduces selected dynamic motion near the top; it is a supplemental response-control device.
