In this article, the Rebound Test (schmidt hammer test) is outlined.

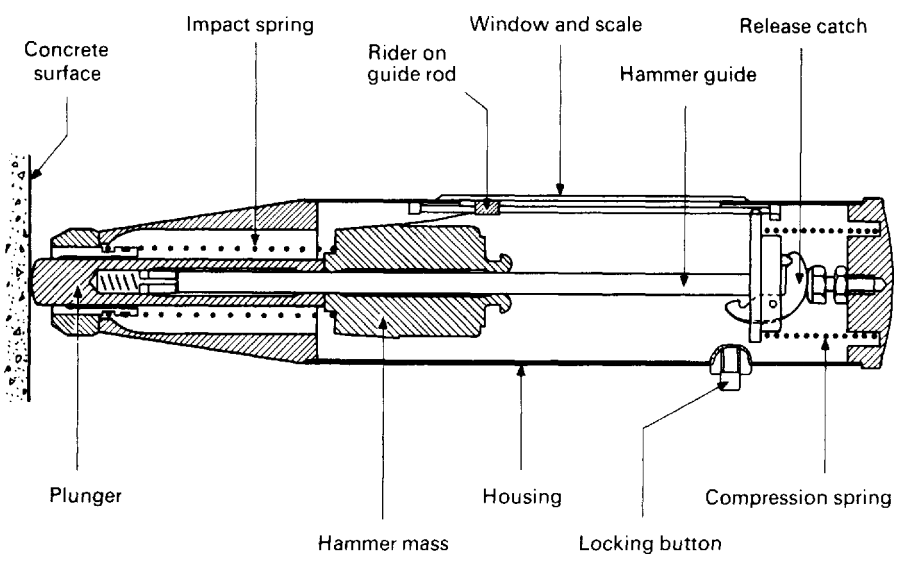

The Swiss engineer Ernst Schmidt, first developed a practicable rebound test hammer in the late 1940s, amd modern versions are based on this. Figure 1 shows the basic features of a typical type N hammer, which weighs less than 2 kg, and has an impact energy of approximately 2.2 Nm.

The spring-controlled hammer mass slides on a plunger within a tubular housing. The plunger retracts against a spring when pressed against the concrete surface and this spring is automatically released when fully tensioned, causing the hammer mass to impact against the concrete through the plunger.
When the spring-controlled mass rebounds, it takes with it a rider which slides along a scale and is visible through a small window in the side of the casing. The rider can be held in position on the scale by depressing the locking button. The equipment is very simple to use (Figure 2), and may be operated either horizontally or vertically either upwards or downwards.

The plunger is pressed strongly and steadily against the concrete at right angles to its surface, until the spring-loaded mass is triggered from its locked position. After the impact, the scale index is read while the hammer is still in the test position. Alternatively, the locking button may be pressed to enable the reading to be retained, or results can be recorded automatically by an attached paper recorder. The scale reading is known as the rebound number, and is an arbitrary measure since it depends on the energy stored in the given spring and on the mass used. This version of the equipment is most commonly used, and is most suitable for concretes in the 20–60 N/mm2 strength range. Electronic digital reading equipment with automatic data storage and processing facilities is also available (Figure 3). Other specialized versions are available for impact sensitive zones and for mass concrete.

Rebound Hammer Test Procedure
- Confirm the hammer type, identification, verification status, and the governing test method.
- Select sound test areas away from edges, visible defects, embedded steel, voids, and highly textured surfaces.
- Prepare a clean, dry, smooth test surface as permitted by the method. Record moisture, surface condition, member, location, and hammer orientation.
- Hold the plunger perpendicular to the surface and increase pressure steadily until impact.
- Record each rebound number and the exact test location. Obtain the required number of readings for one test area under the selected standard.
- Review the readings for outliers using the governing method, calculate the representative result, and report every correction or rejection rule used.
- Verify the instrument on its reference anvil at the required interval and whenever its performance is in doubt.
Variables That Change the Reading
| Variable | Why it matters | Record or control |
|---|---|---|
| Hammer orientation | Gravity affects the moving mass and the manufacturer’s correction. | Horizontal, upward, downward, or specified angle. |
| Moisture | Wet surfaces can give different readings from dry surfaces. | Surface condition and recent exposure. |
| Carbonation | A hardened carbonated skin can raise the surface reading relative to the interior. | Carbonation assessment when strength correlation matters. |
| Surface texture | Roughness and finishing change local impact response. | Preparation method and visible condition. |
| Aggregate and mix | Local aggregate, cement system, and age affect correlation. | Mix/source information and member age where known. |
| Member stiffness | Thin or poorly supported elements may move during impact. | Thickness, support, and test location. |
