Ductility is a very important aspect to look for when designing a structure, especially for lateral load. But, what is ductility?
For a reinforced concrete member, ductility is the ability to continue deforming after the flexural reinforcement starts to yield, without a sudden loss of load-carrying capacity. It is not simply a property of concrete. We have to consider the reinforcing steel, the section, the complete member, its connections, and finally the structural system.
Each material has a certain level of ductility. Some have none and some have a lot. Imagine having a ruler. If it is made of flexible plastic and you bend it, it will bend and develop some stretch marks before it breaks. What if it was made of rigid plastic? It will bend slightly and break suddenly when it gets bent beyond a certain point.
That simple example shows why ductile behavior is preferred. Cracking, yielding, and visible deformation can give warning during a gradually increasing load. During an earthquake, however, the shaking happens too quickly to treat cracks as an evacuation warning. The main safety benefit is that a properly detailed structure can deform inelastically, dissipate energy, and avoid a sudden brittle loss of strength.
This is very important in general and in seismic areas, especially. This article has a purpose of indicating a few measures that can improve the ductility of reinforced concrete members without turning general principles into universal detailing rules.
How Is Reinforced Concrete Ductility Measured?
Two common measures are displacement ductility and curvature ductility. The first describes the movement of a member or system. The second describes how much a section can curve after yielding.
Displacement ductility: μΔ = Δu / Δy
Curvature ductility: μφ = φu / φy
Δy and φy are the displacement and curvature at yield. Δu and φu are the corresponding values at the defined ultimate condition.
For example, if a test member yields at a displacement of 20 mm and reaches its defined ultimate condition at 80 mm, its displacement ductility is:
μΔ = 80 mm / 20 mm = 4.0
The units cancel, so the ductility ratio is dimensionless. This value is an example only, not a code acceptance limit. The yield point and ultimate condition must be defined consistently because a test program or nonlinear analysis may define the ultimate condition by a specified strength loss rather than total collapse.
Improving the Ductility of Reinforced Concrete Elements
| Design or detailing measure | What it changes | Failure it helps prevent |
|---|---|---|
| Use a tension-controlled flexural section where required | Allows reinforcing steel to yield before the concrete compression zone reaches a brittle limit | Sudden compression-controlled flexural failure |
| Design shear from the probable flexural mechanism | Keeps the intended flexural response from being cut short by diagonal cracking | Beam, column, wall, or joint shear failure |
| Provide effective transverse reinforcement in critical regions | Confines the concrete core and restrains longitudinal bars against buckling | Core crushing, cover loss followed by rapid degradation, and bar buckling |
| Develop and anchor reinforcement properly | Allows the bars to reach and sustain the intended force through cyclic deformation | Bond, pullout, anchorage, and premature splice failure |
| Apply strong-column/weak-beam capacity design | Encourages inelastic rotations in designated beam regions while protecting columns and joints | Weak-story and column-sway mechanisms |
| Use a regular, continuous, and redundant load path | Spreads deformation demand instead of concentrating it in one member or story | Localized overload, torsional concentration, and disproportionate system response |
| Coordinate reinforcement for constructability | Leaves enough room to place and consolidate concrete around bars and ties | Voids, honeycombing, displaced bars, and missing or opened ties |
1. Keep the load path regular, continuous, and redundant
If possible, keep the structural system for load transferring as simple as you can. Do not seek complexity unless there are constraints that push you to do that. Regular and uniform systems are preferable because they make the force path and deformation demand easier to understand.
In case of lateral-load-resisting systems such as reinforced concrete moment frames, it is recommended to increase the redundancy of the system. Still, a simple layout alone does not guarantee ductility. The system should have continuity and enough redundancy so that one local problem does not immediately remove the complete load path.

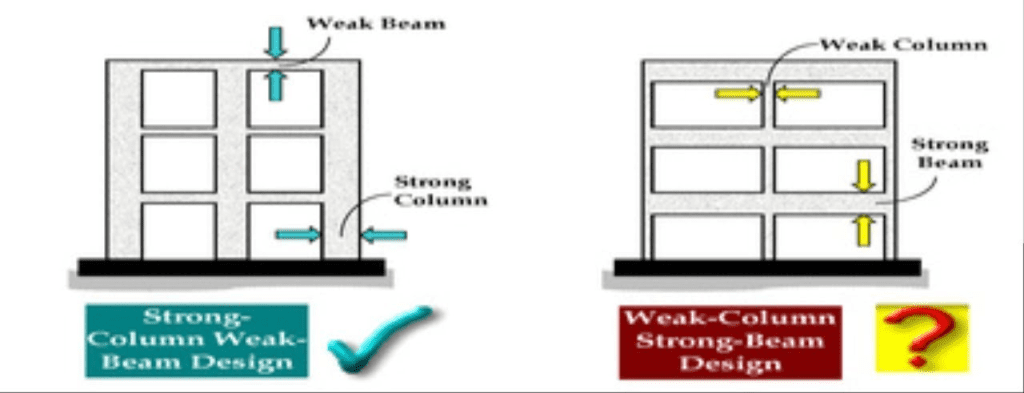

2. Use strong-column/weak-beam behavior correctly
Another important aspect is the implementation of the concept of strong-column/weak-beam in the structural design process to prevent column failure under extreme loading and to control the formation of plastic hinges. This does not mean that beams should collapse. It means that the columns and joints are proportioned to remain stronger than the beam actions defined by the code, so that inelastic rotations are encouraged in intended and properly detailed beam regions.
The columns and beams must be constructed in accordance with the strong-column/weak-beam design to prevent the concentration of damage caused by column failure at lower levels. Plastic hinges produced in the intended beam regions enhance the structure’s ductility. They allow it to withstand large lateral displacements while dissipating seismic energy more effectively and avoiding a weak-story mechanism. Column hinging may still be expected at selected locations, such as the base, but those regions must be designed and detailed for the demand.
3. Prevent shear and other brittle failures from occurring first
Of course, sudden and brittle types of failures should be avoided, such as shear failure, joint failure, anchorage failure, bar buckling, and premature concrete compression failure. A member cannot use its flexural ductility if one of these modes occurs first.
For seismic systems, this normally means using capacity design. The beam, column, joint, wall, connection, and foundation actions are checked for the forces that can develop when the intended flexural regions reach their probable strength. The required procedure and overstrength assumptions come from the adopted code, not from a general rule of thumb.
4. Include foundations and connections in the mechanism
Eliminating the risks of foundation system failure is another thing to keep in mind when seeking improvement in ductility. The foundation and its connections need adequate strength and compatible deformation capacity. A ductile frame cannot perform as intended if a brittle footing, pile, anchorage, or transfer connection fails first.
5. Let the tension steel yield before brittle flexural failure
When choosing between under-reinforced and over-reinforced concrete sections, select the under-reinforced behavior when the governing design requirements call for ductile flexure. Under-reinforced concrete sections have a better ability to deform significantly before failure because the tension reinforcement yields before the concrete crushes in compression.
However, “under-reinforced” should not be used as an isolated rule. The designer must check the strain condition, reinforcement limits, axial load, material properties, and confinement required by the governing code. More longitudinal steel is not always better. Beyond the code limit, extra tension reinforcement can increase strength while reducing the available ductility.
6. Confine concrete at critical locations
One last point to mention is the use of lateral confinement at critical locations such as connections and important locations in columns to increase the capacity of these locations to withstand deformations. Potential plastic-hinge regions, column ends, and wall boundary zones also need the transverse reinforcement required by the governing code.
Properly arranged closed hoops, ties, or cross-ties restrain the lateral expansion of the concrete core and the buckling of longitudinal bars after the cover concrete spalls. Confinement can improve the usable compressive strain and slow the loss of strength under repeated loading. Still, it has limits. High axial compression can reduce column ductility, and a large amount of poorly arranged transverse steel does not automatically create effective confinement.
7. Detail joints, anchorage, and splices for the expected deformation
Beam-column joints transfer moment, shear, and axial force between members. Bars must have enough development and anchorage to sustain the required force, including load reversals where they apply. Lap splices should not be placed in regions where the governing code expects large inelastic rotations.
The detail must also be buildable. If beam bars, column bars, hoops, cross-ties, and splice hardware all compete for the same space, the drawing may be correct but the concrete may not be placeable.
Practical Ductile-Detailing Check
- Identify where yielding is intended to occur and where it must not occur.
- Check that flexural yielding is not pre-empted by shear, joint, bond, splice, or foundation failure.
- Confirm the required material ductility and reinforcement strain limits.
- Detail transverse reinforcement for confinement, shear, and bar-buckling restraint.
- Provide development, anchorage, and splice locations for the expected load reversals and rotations.
- Check strong-column/weak-beam and other capacity-design requirements using probable strengths where required.
- Review the reinforcement in three dimensions for clashes, concrete flow, and vibrator access.
- Inspect the critical regions before concrete placement.
Employing the appropriate parts of the relevant codes, such as material requirements for ductility, ductile detailing of beams, columns, walls, and frames, and suitable reinforcement detailing at joints, the measures above can be carried out. For the flexural failure sequence, see RC Beam Behavior Under Load. For personal safety actions rather than structural design, see How to Stay Safe During an Earthquake.
References
- American Concrete Institute. ACI CT-25: ACI Concrete Terminology, 2025.
- American Concrete Institute. ACI 318 Building Code Portal, confirming ACI CODE-318-25 as the current edition.
- Moehle, J. P., and Hooper, J. D. Seismic Design of Reinforced Concrete Special Moment Frames: A Guide for Practicing Engineers, Second Edition. NIST GCR 16-917-40, 2016.
