What is Backfilling?

Construction, Foundation, Geotechnical
backfilling

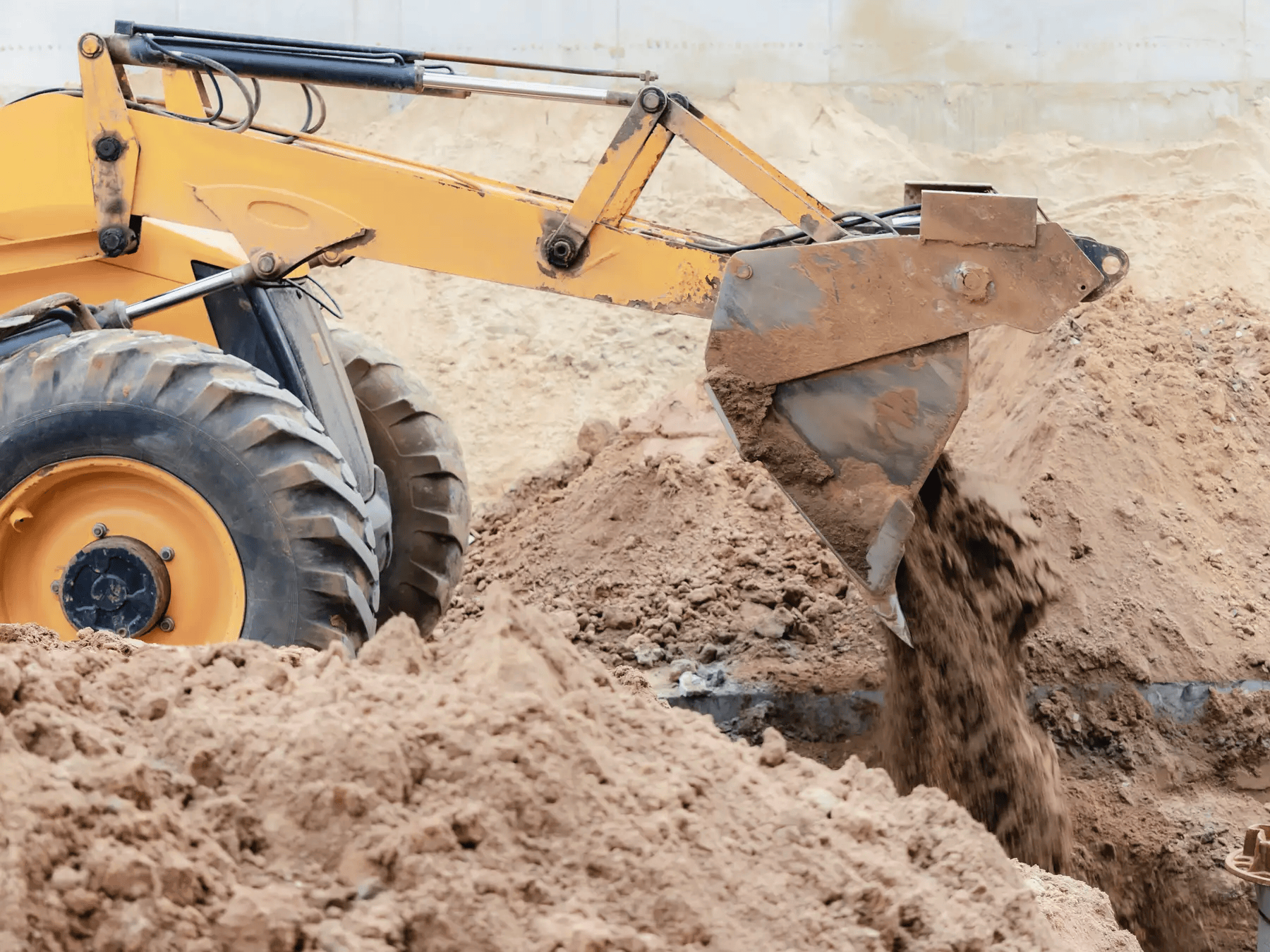

Backfilling means replacing soil or placing approved fill into an excavation after foundations, walls, services, or other underground work have been completed. It is not simply pushing the excavated soil back into the hole. The material, moisture, lift thickness, equipment, and testing must work together so the finished fill supports the construction without excessive settlement or damage.

Good backfilling protects the foundation and drainage system, restores the required ground level, and provides uniform support for slabs, pavements, or landscaping. Poor backfilling can cause settlement, cracked finishes, damaged waterproofing, blocked drains, displaced walls, or low areas that collect water.

When can foundation backfilling start?

There is no universal rule that foundation backfilling can start after five or seven days. The correct starting point depends on the structure, the material strength, temporary bracing, the height of fill, compaction equipment, and the engineer’s requirements.

Before starting, confirm that the concrete or masonry has reached the strength required to resist the expected lateral pressure and equipment surcharge. Any required wall bracing must be installed. Waterproofing, protection board, perimeter drains, utility entries, and below-grade inspections should also be complete.

Important: Do not use the calendar alone to release backfilling. Obtain the specified inspection and engineer approval, then follow the approved sequence and equipment limits.

Suitable backfill materials

The best material is not always the soil that came from the excavation. Reuse is acceptable only when the excavated material meets the project specification and can be placed at a workable moisture content. The geotechnical report should define the permitted gradation, plasticity, maximum particle size, organic content, and compaction requirement.

Material Typical advantages Checks and limitations
Well-graded granular fill Compacts predictably, provides good support, and can drain well when fines are controlled. Check gradation, maximum particle size, segregation, compatibility with drains, and the specified density test.
Approved excavated soil Reduces hauling and imported-material cost. Reject or process material that is wet, frozen, organic, contaminated, highly expansive, or mixed with debris. Suitability is project-specific.
Low-plasticity fine-grained soil Can be used where the specification permits cohesive fill. Moisture control is critical. It can be difficult to compact when too wet and may drain slowly.
Free-draining aggregate around drains Helps move water toward the drainage system. Use the specified filter fabric or graded filter so surrounding soil does not migrate into the drain layer.
Controlled low-strength material (CLSM) Flows into restricted spaces and normally needs no mechanical compaction. Specify strength, flow, excavation requirements, containment, and protection against floating pipes or tanks. It is not an automatic substitute for every soil backfill.

Large particles can damage waterproofing or create voids. Soft shale, roots, rubbish, topsoil, snow, ice, and construction debris are not structural backfill. For more background on soil behavior, see the CEW guide to main types of soil.

Preparation before placing backfill

  1. Complete the hold-point inspection. Confirm the foundation, wall, utilities, waterproofing, drainage, and any termite or insulation work have been accepted.
  2. Clean the excavation. Remove standing water, loose mud, timber, packaging, vegetation, and waste. Do not bury site rubbish.
  3. Protect the drainage path. Check the drain pipe alignment, outlets, cleanouts, aggregate envelope, and filter layer. Keep fines out of the drainage aggregate.
  4. Protect the wall surface. Repair damaged waterproofing and install the specified protection board before soil touches the membrane.
  5. Confirm access and equipment limits. Mark utility routes and the permitted equipment standoff. Verify that the compactor can reach the full area without striking the wall or services.
  6. Approve the source material. Match delivery tickets, visual condition, and laboratory classification to the approved material.

Backfilling procedure in the field

1. Place a uniform loose lift

Spread the material in a level layer. Do not dump a deep pile against one point on a wall and then try to compact it. The loose lift thickness must suit the soil and compaction equipment and must not exceed the project specification.

FHWA guidance for some engineered granular fills uses lifts around 6 to 8 in. (150 to 200 mm) so small equipment can compact the material. That is useful context, but it is not a universal building-foundation requirement. A field trial may be needed for unusual material or equipment.

2. Adjust moisture when required

Soil that is too dry may not bind and densify. Soil that is too wet may pump, rut, or lose strength. Add water gradually and mix it through the lift; do not flood the surface. If the material is wet, aerate, blend, process, or replace it as directed.

3. Compact without damaging the structure

Use the equipment and number of passes established by the specification or approved trial. Large rollers can create excessive lateral pressure beside basement and retaining walls. Lightweight rammers or plates are normally used in the restricted zone defined by the engineer. Place backfill in a balanced sequence where unequal fill heights could push a wall sideways.

4. Test and accept each area

Do not hide a failed lift under the next one. Field density and moisture results should be compared with the specified laboratory reference, commonly ASTM D698 or ASTM D1557 in US practice. These two tests use different compactive efforts, so a percentage is incomplete unless the reference method is stated.

The project may require 90%, 95%, 100%, or another value of maximum dry density depending on the location and intended use. The specification controls. Open-graded stone may require a method specification, proof rolling, or movement-based acceptance rather than an ordinary Proctor density result.

Backfill quality-control record

Hold point What to record Reason
Before first lift Inspection release, wall/bracing condition, waterproofing, drains, services, excavation condition. Prevents approved work from being buried before it is documented.
Material delivery Source, material type, ticket or sample ID, visual condition, oversize or contamination. Confirms that the placed fill matches the approved source.
Each lift Location, loose thickness, moisture adjustment, equipment, pass count, balanced placement. Shows how the specified placement method was followed.
Field test Test location and elevation, wet and dry density, moisture, reference maximum density, percent compaction, specification limit. Makes the result traceable and prevents mixing D698 and D1557 values.
Failed result Area limits, cause, corrective work, retest number, final acceptance. Ensures a failed lift is corrected before it is covered.
Final grade Elevation, slope away from the building, drainage outlet condition, settlement allowance if specified. Controls surface water and confirms the design profile.

Common backfilling mistakes

  • Starting because a fixed number of days has passed. Release should be based on strength, bracing, inspections, and the approved sequence.
  • Placing material in lifts that are too thick. The surface may look firm while the lower part remains loose.
  • Using heavy equipment too close to a wall. Equipment surcharge and compaction energy can crack or displace the wall.
  • Burying wet mud or frozen soil. These conditions prevent reliable compaction and can cause later settlement.
  • Damaging waterproofing or drains. A small tear or crushed pipe can create a serious moisture problem after the site is closed.
  • Ignoring utility buoyancy or movement. Flowable fill and wet soil can lift or shift light pipes and tanks unless they are restrained.
  • Testing without naming the reference curve. Percent compaction is meaningful only with the correct laboratory maximum dry density and moisture relationship.
  • Finishing with poor surface drainage. Backfill should not direct rainwater toward the foundation.

When CLSM is useful

Controlled low-strength material, also called flowable fill, can be useful around utilities, in narrow excavations, or where mechanical compaction is difficult. ACI defines CLSM as a self-consolidating cementitious material used primarily as backfill instead of compacted fill. It is intended to have a compressive strength of 1,200 psi (8.3 MPa) or less.

That upper definition limit does not mean every mixture should approach it. Where future excavation is possible, the designer may require a much lower excavatable strength. The specification should also address flow, bleeding, settlement, curing, loading time, pipe restraint, and how the material will be contained.

Backfilling checklist

  • Approved drawings, geotechnical recommendations, and earthwork specification are available.
  • Foundation or wall strength and bracing are approved for the planned fill height and equipment.
  • Waterproofing, protection board, drains, and service penetrations have passed inspection.
  • The excavation is clean, stable, and free of standing water.
  • The backfill source and moisture condition are accepted.
  • Lift thickness, equipment type, restricted zone, pass count, and density requirement are understood.
  • Testing is completed at the specified locations and frequency before the next lift covers the work.
  • Failed areas are reworked and retested.
  • Final grade and drainage slope direct water away from the structure.

Backfilling follows excavation, but it should be planned before excavation begins. Access, stockpiles, dewatering, shoring, testing, and drainage details all affect the sequence. The related CEW articles on excavation planning and types of foundation provide useful context.
