When we think about concrete mix design, it is easy to jump straight to water-cement ratio, slump, and strength. But one number quietly influences all of it: specific gravity.
Specific gravity tells us how dense the aggregate particles are compared with water. Absorption tells us how much water enters the permeable pores of an oven-dry aggregate during the prescribed soaking period. Together, these results affect absolute-volume calculations and aggregate moisture corrections.
For normalweight coarse aggregate, the standard laboratory method is ASTM C127-25, Standard Test Method for Relative Density (Specific Gravity) and Absorption of Coarse Aggregate. ASTM now uses the term relative density (specific gravity), but many laboratories still use the shorter term specific gravity.
What ASTM C127 Measures
The test gives four related results:
| Result | What is included | Typical use |
|---|---|---|
| Bulk relative density, oven-dry (OD) | Particle volume includes permeable pores; mass is oven dry | Absolute-volume calculations when aggregate is treated as dry |
| Bulk relative density, SSD | Particle volume includes permeable pores; those pores are filled with water | Concrete mixture calculations based on the SSD condition |
| Apparent relative density | Excludes the volume of pores that water can enter | Particle-solid comparison and some aggregate calculations |
| Absorption | Water held in permeable pores relative to oven-dry mass | Aggregate moisture and batch-water correction |
Do not confuse particle relative density with the bulk density measured by ASTM C29. Bulk density includes the voids between separate aggregate particles; ASTM C127 does not.
Equipment and Sample Preparation
The basic equipment includes a balance suitable for weighing the sample in air and water, a water tank, a suspended wire basket or container, absorbent cloths, trays, and a ventilated oven. Precision matters: trapped air, material lost from the basket, or an incorrect SSD condition can move every calculated result.
Use a representative coarse-aggregate sample. Wash away dust and coatings, then follow the current standard for drying, cooling, soaking, and minimum sample mass. The required mass changes with nominal maximum aggregate size, so one fixed mass is not correct for every sample.
How to Reach the SSD Condition
SSD means the permeable pores are filled with water while the particle surfaces are dry. This is usually the most judgment-sensitive part of the test.
- After the prescribed soaking period, remove the sample from the water.
- Roll the particles in a large absorbent cloth until visible surface water is removed.
- Blot larger particles individually when needed.
- Work promptly so evaporation does not pull water out of the pores before the SSD mass is recorded.
The surface should no longer carry a film of free water. Do not keep drying until the particle pores begin to lose absorbed water.
ASTM C127 Test Sequence
- Record the SSD mass in air. Use this as B.
- Record the apparent mass in water. Place the SSD sample in the submerged container, remove trapped air, and use this mass as C.
- Dry to constant mass. Oven-dry the sample as required by the method, cool it without allowing moisture gain, and use the oven-dry mass in air as A.

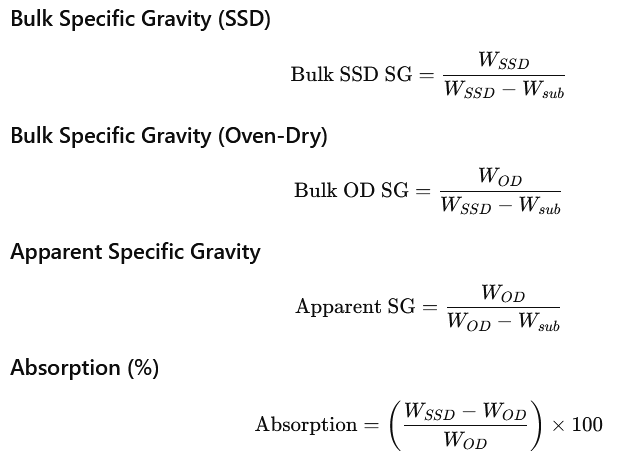

ASTM C127 Formulas
| Reported result | Formula |
|---|---|
| Bulk relative density (OD) | A / (B – C) |
| Bulk relative density (SSD) | B / (B – C) |
| Apparent relative density | A / (A – C) |
| Absorption (%) | [(B – A) / A] x 100 |
Relative density is dimensionless. Absorption is reported as a percentage of the oven-dry mass. Follow the current standard or project laboratory procedure for rounding and report format.
Checked ASTM C127 Example
Assume the following measured masses:
- A, oven-dry mass in air = 1,976 g
- B, SSD mass in air = 2,000 g
- C, apparent mass in water = 1,250 g
Bulk relative density (OD) = 1976 / (2000 – 1250) = 2.635
Bulk relative density (SSD) = 2000 / (2000 – 1250) = 2.667
Apparent relative density = 1976 / (1976 – 1250) = 2.722
Absorption = [(2000 – 1976) / 1976] x 100 = 1.21%
The arithmetic is internally consistent: SSD mass is higher than oven-dry mass because the permeable pores contain water, and the apparent relative density is higher because its denominator excludes those permeable pores.
Why the Results Matter in Concrete
Concrete mixture proportions use aggregate relative density to convert aggregate mass into absolute volume. Absorption is then used with the actual stockpile moisture content to determine whether the aggregate contributes free surface water or will absorb part of the mixture water.
If aggregate moisture is not corrected, the effective water-cementitious materials ratio and yield can change. A wet stockpile may add water to the batch; aggregate drier than SSD may remove water during mixing. The correction must use the measured stockpile moisture condition, not absorption by itself.
Absorption also gives useful information about pore structure, but it is not a stand-alone durability acceptance test. Aggregate source, mineralogy, grading, soundness, abrasion resistance, and service exposure still matter.
Common ASTM C127 Errors
- Leaving free water on the surface: B becomes too high and the calculated absorption is inflated.
- Overdrying during SSD preparation: B becomes too low because water is removed from accessible pores.
- Trapping air in the submerged sample: the water mass reading is distorted.
- Losing particles between weighings: A, B, and C no longer describe the same sample.
- Using one generic sample mass: minimum sample mass depends on aggregate size.
- Mixing C127 with C128: fine aggregate uses a different SSD procedure. See the ASTM C128 fine-aggregate test.
Related Aggregate Tests
Specific gravity and absorption are only part of aggregate evaluation. Use ASTM C136 sieve analysis for grading, ASTM C29 for bulk density and voids, and the governing project tests for durability and deleterious materials. The final values then feed into the concrete mixture design and moisture-correction process.
