The ASTM C1202 test does not directly measure chloride permeability or a chloride diffusion coefficient. It measures the electrical charge that passes through a saturated concrete specimen under a 60 V direct-current potential for six hours. The result is a rapid electrical indication of the concrete’s resistance to chloride-ion penetration.
Concrete is not immortal. Water and chlorides from seawater or deicing salts can move through its pore system and eventually reach the reinforcement. Once the passive film on the steel is locally damaged, corrosion may begin. That is why engineers compare mixtures and curing regimes before approving concrete for bridge decks, parking structures, marine work, and other chloride exposures.
What the ASTM C1202 RCPT result actually means
The test result is total electrical charge in coulombs. A low value means the saturated specimen conducted less electrical current during the test. For comparable specimens, ages, curing histories, and mixture families, that usually indicates a denser and less connected pore system with better resistance to ionic transport.
However, electrical current is carried by all mobile ions in the pore solution, not only chloride. The result therefore depends on both pore structure and pore-solution chemistry. It should not be reported as a measured permeability coefficient or used alone as a service-life prediction.
Basic test setup and sequence

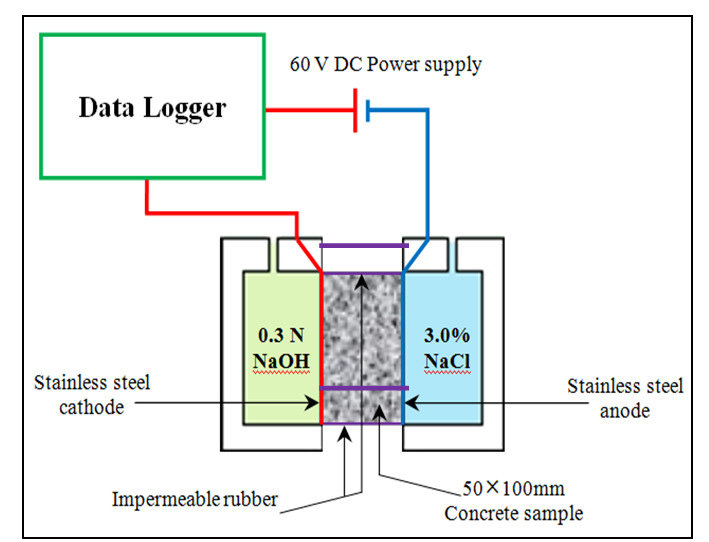

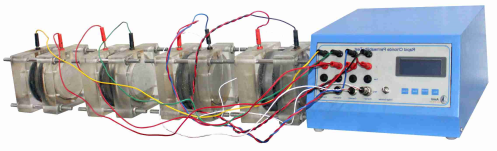

The standard procedure is written for a nominal 100 mm diameter specimen approximately 50 mm thick. The side surface is sealed, the specimen is vacuum saturated, and the two exposed faces are mounted between solution cells. One cell contains sodium chloride solution and the other contains sodium hydroxide solution. A 60 V direct-current potential is applied for six hours while current is recorded.
- Prepare the specimen. Saw the required disc from a molded cylinder or core, check dimensions, and avoid reinforcement or conductive fibers that could create a direct electrical path.
- Seal the curved surface. This confines current and solution contact to the two end faces.
- Condition the specimen. Vacuum saturation reduces differences caused by incomplete pore saturation.
- Mount the test cell. Confirm seals and solution contact over the full exposed area.
- Apply the potential and log current. Record the current at the intervals required by the governing edition and monitor the test for abnormal heating or leakage.
- Integrate current over time. Report total charge passed, apply the standard specimen-size adjustment when required, and interpret the value with the specified age and curing history.
How total charge is calculated
Charge is the area under the current-versus-time curve:
where Q is charge in coulombs, I is current in amperes, and t is time in seconds. With readings every 30 minutes, the trapezoidal calculation is:
The current values in that equation are in amperes. If the instrument exports milliamperes, divide by 1,000 before reporting coulombs. For specimens outside the standard geometry, use the size adjustment in the current ASTM edition rather than comparing the raw charge directly with a standard specimen.
Illustrative integration check
Suppose the current rises nearly linearly from 0.080 A at the start to 0.120 A after six hours. The average current is about 0.100 A. A quick independent check gives:
The formal result must use all logged readings and any required geometry correction. This simple check helps catch a misplaced decimal point or a milliampere-to-ampere error.
ASTM C1202 qualitative penetrability classes
Appendix X1 of ASTM C1202 gives the familiar qualitative relationship below. These classes are useful for screening and specification work, but they are not universal service-life limits.
| Charge passed | Qualitative chloride-ion penetrability | Interpretation caution |
|---|---|---|
| Greater than 4,000 C | High | Check specimen temperature, saturation, leakage, and pore-solution effects before drawing a durability conclusion. |
| 2,000 to 4,000 C | Moderate | Compare only at the specified age and curing condition. |
| 1,000 to 2,000 C | Low | A low class is favorable, but it is not a direct diffusion coefficient. |
| 100 to 1,000 C | Very low | Very low current demands sensitive, properly verified equipment. |
| Less than 100 C | Negligible | Confirm the electrical circuit and specimen contact before accepting an unusually low value. |
Why RCPT can give misleading results
Pore-solution chemistry
Calcium nitrite and other ionic admixtures can increase electrical conductivity even when they do not increase long-term chloride ingress. The test may then report a higher charge because more ions carry current, not because the concrete has a more open pore network.
Joule heating
Current passing through the specimen generates heat. Temperature rise can increase conductivity and push the measured charge higher, especially in more conductive concrete. Abnormal heating is a test-quality warning, not evidence that the structure itself is “failing.”
Age, curing, and saturation
Concrete containing slag or pozzolans may continue to refine its pore structure well beyond 28 days. ASTM notes that sample age and curing have significant effects. The test age and conditioning procedure therefore belong beside the coulomb value in any acceptance requirement.
Conductive materials and treatments
Steel or carbon fibers can create conductive paths. Surface treatments can also produce RCPT results that do not agree with long-term ponding performance. Use the method only where its assumptions suit the material being tested.
RCPT compared with other chloride-resistance tests
| Method | Primary output | Best use | Main limitation |
|---|---|---|---|
| ASTM C1202 | Total charge passed | Rapid mixture comparison, qualification, and acceptance when criteria are properly established | Electrical response includes all mobile ions and is sensitive to heating, age, curing, and saturation |
| ASTM C1876 | Bulk electrical resistivity or conductivity | Faster electrical transport indicator using dedicated equipment | Still depends on saturation, temperature, pore structure, and pore-solution composition |
| AASHTO T 358 | Surface resistivity | Rapid, non-destructive repeat measurements on suitable specimens | Geometry, moisture condition, temperature, and aggregate can affect the result |
| ASTM C1556 | Apparent chloride diffusion coefficient | Chloride ingress modelling for saturated exposure | Longer test; coefficient changes with age and includes chloride binding effects |
How to specify and review RCPT results
A project specification should state the test edition, specimen source, curing regime, test age, number of specimens, acceptance statistic, and treatment of outliers. ASTM C1202-25 specifically warns that acceptance criteria should be statistically based and should balance supplier and purchaser risk.
When reviewing a report, ask:
- Were the specimen age and curing history the same as the project requirement?
- Were the specimen dimensions, saturation, seals, and solution contact recorded?
- Did current or temperature behave abnormally during the six-hour run?
- Does the mixture contain ionic admixtures, conductive fibers, or a surface treatment?
- Was the result calculated from the full current record and adjusted for geometry when required?
- Is RCPT the right property for the decision, or is a diffusion, resistivity, absorption, or ponding test more appropriate?
Connection to reinforcement corrosion
RCPT is a mixture-level transport indicator. It does not measure the chloride concentration at the reinforcing steel, the corrosion rate, or the remaining structural capacity. For the electrochemical process that follows chloride arrival, see the CEW explanation of the chloride-induced corrosion mechanism.
References
- ASTM C1202-25, Electrical Indication of Concrete’s Ability to Resist Chloride Ion Penetration.
- FHWA, Testing Chloride Penetration Resistance of Concrete.
- ASTM C1876-25, Bulk Electrical Resistivity or Bulk Conductivity of Concrete.
- ASTM C1556-25, Apparent Chloride Diffusion Coefficient by Bulk Diffusion.
- FHWA, Surface Resistivity Test Evaluation as an Indicator of Chloride Permeability.
