Causes of Formwork Failures

Failure of formwork in general results from various causes: excessive loads, premature removal of forms or shores, inadequacies related to formwork, and human error on the job, whether due to indifference, haste, or lack of knowledge. Hadipriono and Wang (1986) studied the causes of 85 major falsework failures that have been documented over the past 23 years. Three causes of failure were identified: enabling, triggering, and procedural causes (Table 1). The enabling causes are defined as events that contribute to the deficiencies in the design and construction of falsework. The triggering causes are usually external events that could initiate falsework collapse. The procedural causes are frequently hidden events chat produce the enabling and, many times, the triggering events- Most failures occurred as result of the interaction between triggering and enabling events that were, in many cases, produced by inadequacies in procedural methods.

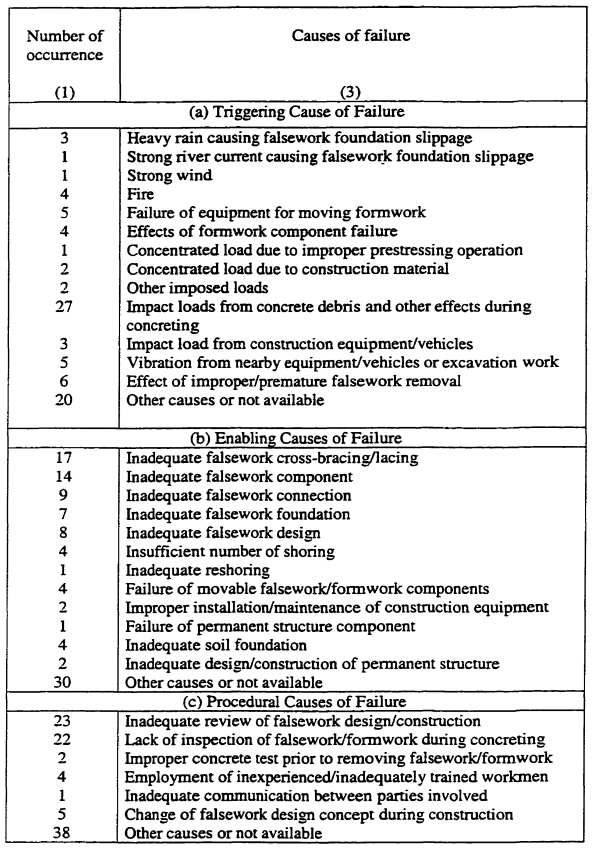

Table 1: Causes of Falsework Failure (Hadipriono and Wang, 1986)

Causes of Falsework Failure
Causes of Falsework Failure

According to the type of collapse, almost half of the building falsework failures were due to deficiencies in vertical shores (Figure 1). Figure 2 shows that concrete placing, and falsework and formwork removals are two critical stages of operation. One out of two falsework collapses occurred during concrete casting. In many cases, the excessive rate of pouring and the direct vibration to form ties led to vertical formwork failures. As a result of vertical formwork bursting in multistory buildings, the additional loads imposed by the fallen debris triggered a collapse in the level below. In other cases, the accident caused by impact of powered equipment, such as motorized buggies, imposed additional loads on falsework and led to falsework collapses. Falsework or formwork removal is the other critical operation stage, about 12% of falsework failures occurred as a result of improper reshoring, and premature falsework or formwork removal.

Falsework Collapse by Type of Falsework

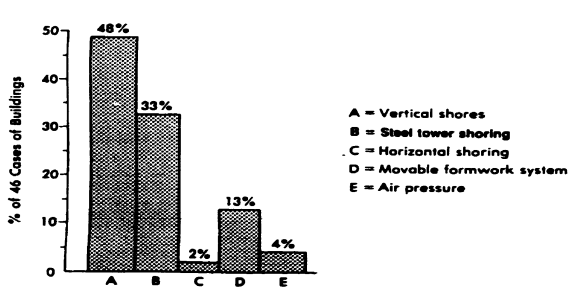

Figure 1: Falsework Collapse by Type of Falsework (Hadipriono and Wang, 1986)
Falsework Collapse by Construction Stage

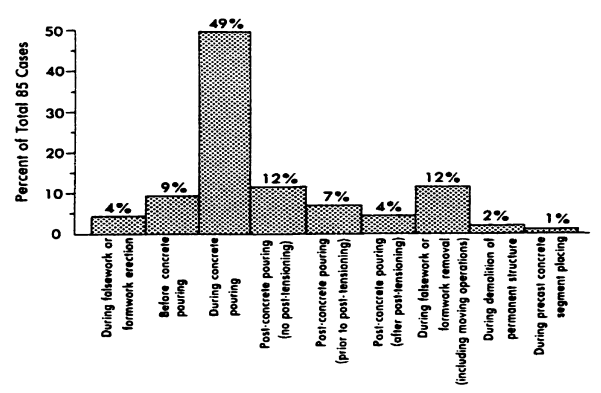

Figure 2: Falsework Collapse by Construction Stage (Hadipriono and Wang, 1986)
